DIY Rocket Stove FlameForge 19″ W x 22″ D x 32″ H | CNC Files & Digital Plans for High-Efficiency Off-Grid Wood-Burning Camping Stove
$9.99
Fabricate your own high-performance DIY Rocket Stove FlameForge with precision CNC files and welding guides. This compact, wood-burning camping stove features a rocket-style burn chamber for intense heat, minimal smoke, and up to 50% less fuel use. Designed for 10–12 gauge steel, it assembles into a stable 19″ W × 22″ D footprint at an ergonomic 32″ cooking height. Instantly download DXF & SVG files, 3D renderings, and step-by-step welding instructions to build the ultimate off-grid stove.
Key Features:
• High-efficiency rocket burn chamber reduces fuel consumption
• CNC-ready DXF & SVG files optimized for plasma, laser, or waterjet cutting
• Rugged welded construction from 10–12 gauge (3 mm) steel
• Stable 19″ × 22″ footprint with a comfortable 32″ cooking height
• Complete 3D renderings, assembly guide, and cut-sheets for streamlined fabrication
Introduction
Build your own high-performance DIY Rocket Stove FlameForge with our premium FlameForge digital plans. Designed specifically for welders, makers, and off-grid enthusiasts, these CNC files provide everything you need to fabricate and weld a heavy-duty, wood-burning camping stove that will last a lifetime. This is the ultimate welding project for creating an essential piece of off-grid gear that you can rely on.
Product Overview
The FlameForge is more than just a plan; it’s a blueprint for the ultimate welded rocket stove. Our digital plans guide you in building a precision-engineered wood-burning stove with maximum heat, minimal smoke, and unmatched durability. The final welded assembly creates a stable camping stove perfect for off-grid kitchens, survival scenarios, and any outdoor adventure where a reliable fire is non-negotiable.
Key Features of this DIY Rocket Stove
-
High-Efficiency Rocket Stove Performance: The advanced burn chamber design is the heart of this DIY rocket stove, maximizing heat from small twigs and branches to create an intense, focused flame. This is the high-efficiency wood-burning stove you need to cook faster with less fuel.
-
Rugged Welded Construction: These CNC files are engineered for a permanent, welded assembly. Fabricated from 10–12 gauge steel, this welding project results in a rock-solid, single-piece unit built for years of high-temperature performance.
-
Stable & Portable Welded Design: The final welded rocket stove is a sturdy, transportable unit. Its 19″ x 22″ footprint provides an unshakeable base, making it the most stable camping stove for uneven ground.
-
Ergonomic Cooking Height: At 32″ tall, this wood-burning stove keeps your cookware at a comfortable working level, saving your back during extended cooking sessions.
-
Eco-Friendly & Versatile: This DIY Rocket Stove is perfect for camping, emergency preparedness, and off-grid living. Its clean combustion makes it an ideal showcase for your fabrication workshop and a responsible choice for outdoor cooking.
CNC Fabrication & Welding Guidelines
-
Optimized CNC Files: Includes nested layouts to minimize material waste during CNC plasma or laser cutting.
-
Material Thickness: Plans are optimized for 10–12 gauge steel (3 mm).
-
Kerf-Adjustable DXF Files: Designed with tolerance for plasma cutting. Adjust kerf settings in your CAM software for a perfect fit-up before welding.
-
Designed for Welding: This welding project is suitable for MIG, TIG, or Stick welding, with clear joint details provided in the digital plans.
Included Files & Resources for Your Rocket Stove Project
-
CNC-Ready DXF Files: For immediate use with your CNC plasma, laser, or waterjet machine.
-
SVG Vector Files: For added compatibility with various CAD/CAM software.
-

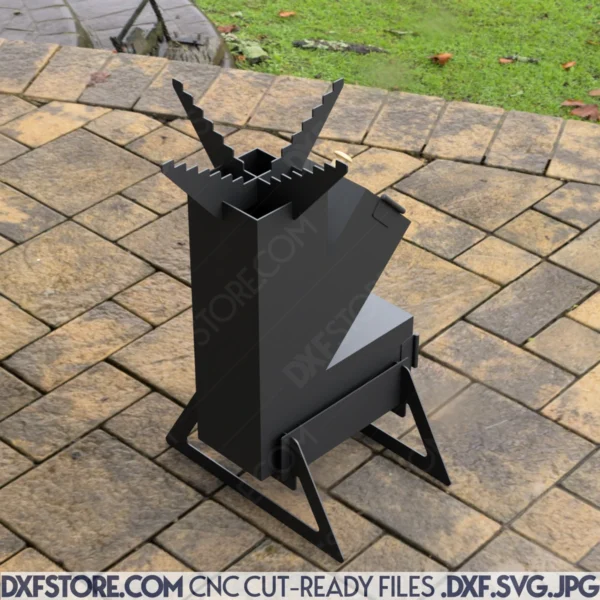

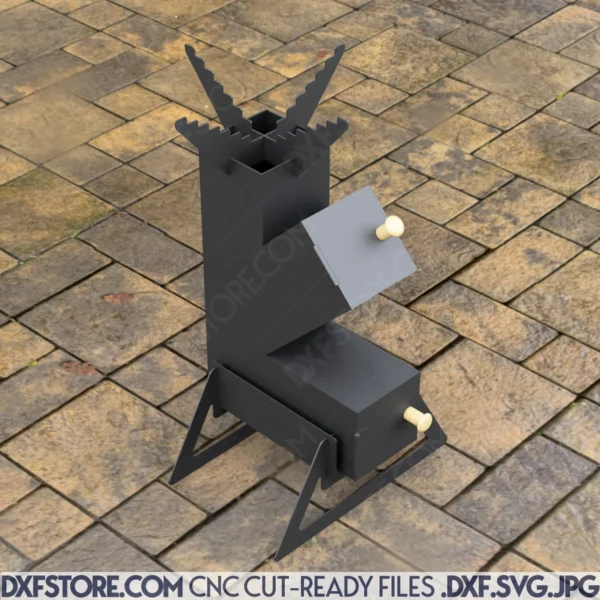

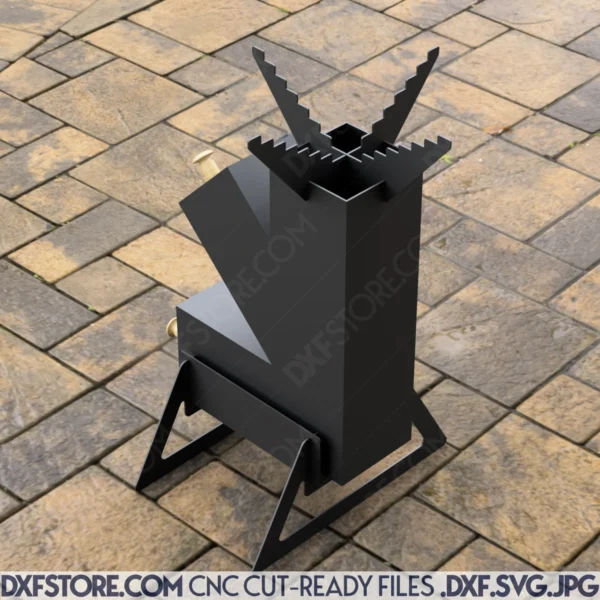

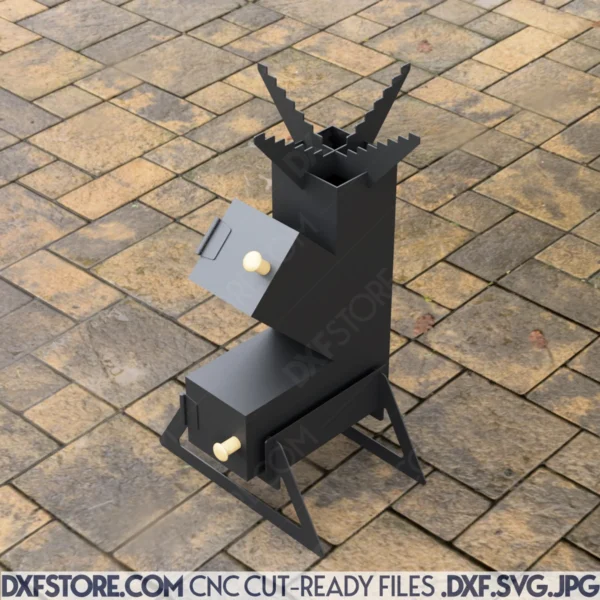

3D Renderings: To visualize the fully welded rocket stove.
-
Step-by-Step Assembly & Welding Guide: Detailed instructions to guide your DIY rocket stove build from flat parts to finished product.
-
Parts & Cut-Sheets: Bill of materials for a streamlined fabrication process.
FAQs for the DIY Rocket Stove FlameForge
Q: What tools do I need for this DIY Rocket Stove project?
A: You will need access to a CNC plasma/laser/waterjet cutter, welding equipment (MIG, TIG, or Stick), an angle grinder, and basic hand tools.
Q: Can I scale these rocket stove digital plans?
A: Yes, the vector files are editable. However, scaling is recommended for experienced fabricators, as it will require adjustments to all interlocking parts for your welding project.
Q: Do you offer support for these CNC files?
A: Absolutely. Join our DXFstore community forum for expert advice on your DIY rocket stove build.
Q: How do I receive my digital plans?
A: You will receive an instant download link immediately after purchase. This is a digital product; no physical camping stove will be shipped.
Ready to build the ultimate DIY Rocket Stove? Download the FlameForge CNC files today and turn your workshop into a production line for the best welded camping stove you’ll ever own. Fire up your welder and start your project now!
